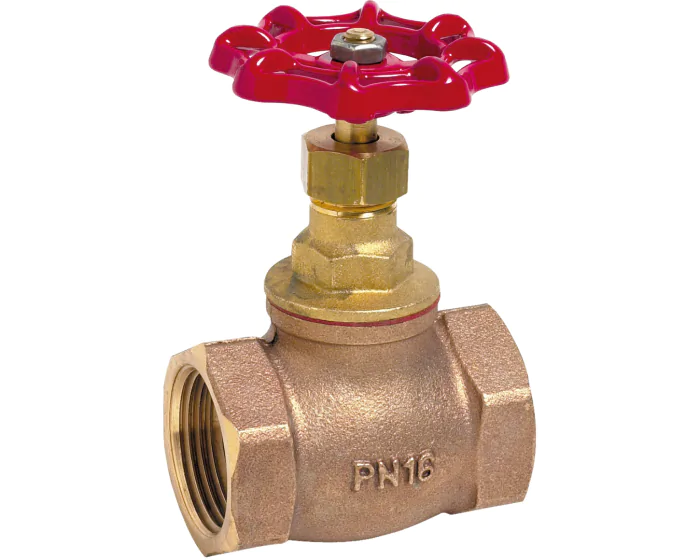

Bronze globe valve 462 with PTFE tightness, featuring a bronze body and PTFE disc. Full bore, PN16, female BSP connections for water supply networks. Operates from -10°C to 110°C, ensuring reliable flow control and shut-off.
| Specification | Value |
|---|---|
| DN inches NPS | 1/4'' |
| DN metric | 8/13 |
| Bonnet material | Brass CW617N |
| Type of seat | parallel |
| CE risk category | III Module H |
| Thread standard | ISO 228-1 |
| Tightness test standard | EN 12266-1. Rate A |
| Opening device | Handwheel |
| Shaft/stem matérial | Brass CW614N |
| Opening device/signal | Manual |
| DN | DN8 - 1/4'' |
| Face to Face (mm) | 45.0 |
| Fluid | Hot / Cold water |
| Gasket | PTFE |
| Body material | Bronze |
| Bore | Full |
| PS (bar) | 16 |
| Connections | BSP FF |
| Seats | Bronze |
| TS max (°C) | 110 |
| TS min (°C) | -10 |
| Warranty period | 2 years |
| Type of stem | Rotating |
| CE | Yes |
| Plug material | Brass CW614N |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Bronze Full 1/4'' | 462002 | S1010667 |
€15.41
(excl. btw)
|
add to cart |
| BSP FF Bronze Full 3/8'' | 462003 | S1010668 |
€15.47
(excl. btw)
|
add to cart |
| BSP FF Bronze Full 1/2'' | 462004 | S1010669 |
€16.34
(excl. btw)
|
add to cart |
| BSP FF Bronze Full 3/4'' | 462005 | S1010670 |
€20.09
(excl. btw)
|
add to cart |
| BSP FF Bronze Full 1'' | 462006 | S1010671 |
€28.19
(excl. btw)
|
add to cart |
| BSP FF Bronze Full 1''1/4 | 462007 | S1010672 |
€44.16
(excl. btw)
|
add to cart |
| BSP FF Bronze Full 1''1/2 | 462008 | S1010673 |
€59.11
(excl. btw)
|
add to cart |
| BSP FF Bronze Full 2'' | 462009 | S1010674 |
€85.09
(excl. btw)
|
add to cart |
